Deskripsi Load Cell CAS MAS 5 -6 Axis

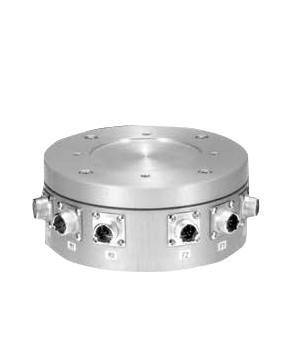

MAS Multi-axis load cell (5axis, 6axis)
FEATURES
- Various capacity of detecting up to 6 components
- Minimise interaction between components
- High accuracy less than 0,5% on each component
- All products patent pending
| Rated output | 0.5mV/V |
| Non linearity | ±0.5% FS for each component force |
| Hysteresis | ±0.5% FS for each component force |
| Allowable over load | ± 150%FS for each component force |
| Degree of interference
(for rated load, allowable moment) |
Between components of force measure : ±3% FS/FS
By other components of force : ±3% FS/FS |
| Influence of temperature on zero point | ±0.01% FS/°C for each component force |
| Influence of temperature on sensivity | ±0.06% FS/°Cfor component force |
Normal 0 false false false IN X-NONE X-NONE /* Style Definitions */ table.MsoNormalTable {mso-style-name:”Table Normal”; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-noshow:yes; mso-style-priority:99; mso-style-parent:””; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-para-margin-top:0in; mso-para-margin-right:0in; mso-para-margin-bottom:10.0pt; mso-para-margin-left:0in; line-height:115%; mso-pagination:widow-orphan; font-size:11.0pt; font-family:”Calibri”,sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-ansi-language:IN;} table.MsoTableGrid {mso-style-name:”Table Grid”; mso-tstyle-rowband-size:0; mso-tstyle-colband-size:0; mso-style-priority:59; mso-style-unhide:no; border:solid windowtext 1.0pt; mso-border-alt:solid windowtext .5pt; mso-padding-alt:0in 5.4pt 0in 5.4pt; mso-border-insideh:.5pt solid windowtext; mso-border-insidev:.5pt solid windowtext; mso-para-margin:0in; mso-para-margin-bottom:.0001pt; mso-pagination:widow-orphan; font-size:11.0pt; font-family:”Calibri”,sans-serif; mso-ascii-font-family:Calibri; mso-ascii-theme-font:minor-latin; mso-hansi-font-family:Calibri; mso-hansi-theme-font:minor-latin; mso-ansi-language:IN;}
|
TYPE |
RATED LOAD (Allowable Load-Allowable Moment) | |||||||
| Fx(kg) | Fy(kg) | Fz(kg) | Mx
(kg xm) |
My
(kg x m) |
Mz
(kg x m) |
|||
| 5
A X I S |
MAS332 |
2L | 2 | 2 | 2 | (3) | 0.2 | 0.2 |
| 5L | 5 | 5 | 5 | (7.5) | 0.5 | 0.5 | ||
| 10L | 10 | 10 | 10 | (15) | 1 | 1 | ||
| 20L | 20 | 20 | 20 | (30) | 2 | 2 | ||
| 50L | 50 | 50 | 50 | (75) | 5 | 5 | ||
|
TYPE |
RATED LOAD (Allowable Load-Allowable Moment) | |||||||
| Fx(kg) | Fy(kg) | Fz(kg) | Mx
(kg xm) |
My
(kg x m) |
Mz
(kg x m) |
|||
| 6
A X I S |
MAS333 |
2L | 2 | 2 | 2 | (3) | 0.2 | 0.2 |
| 5L | 5 | 5 | 5 | (7.5) | 0.5 | 0.5 | ||
| 10L | 10 | 10 | 10 | (15) | 1 | 1 | ||
| 20L | 20 | 20 | 20 | (30) | 2 | 2 | ||
| 50L | 50 | 50 | 50 | (75) | 5 | 5 | ||
