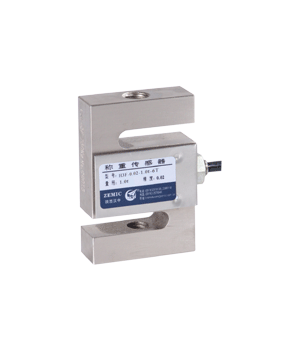

Zemic H3 load cell are available in the capacities 25kg to 30t and 100lb to 20klb. Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. S beam design, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical conversion scale, hopper scale and other electronic weighing devices. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
SPECIFICATIONS : ZEMIC H3 LOAD CELL |
||||||||
| Capacity | t | 0.025 / 0.05 / 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.5 / 0.6 / 0.75 / 1 / 1.5 / 2 / 2.5 / 3 / 5 / 7.5 / 10 / 15 / 20 / 30 | ||||||
| lb | 100 / 200 / 250 / 300 / 500 / 750 / 1K / 1.5K / 2K / 2.5K / 3K / 5K / 10K / 15K / 20K | |||||||
| Accuracy | C2 | C3 | C4 | A5S | A5M | B10S | B10M | |
| Approval | OIML R60 C3 |
OIML R60 C4 |
||||||
| Maximum number of verification intervals |
n max | 2000 | 3000 | 4000 | 5000 | 5000 | 10000 | 10000 |
| Minimum load cell verification interval |
v min | Emax /5000 |
Emax /10000 |
Emax /14000 |
Emax /15000 |
Emax /15000 |
Emax /10000 |
Emax /10000 |
| Combined error |
%FS | ≤ ±0.030 | ≤ ±0.020 | ≤ ±0.018 | ≤ ±0.018 | ≤ ±0.026 | ≤ ±0.035 | ≤ ±0.050 |
| Creep | %FS /30min |
≤ ±0.024 | ≤ ±0.016 | ≤ ±0.012 | ≤ ±0.012 | ≤ ±0.017 | ≤ ±0.030 | ≤ ±0.040 |
| Temperature effect on sensitivity |
%FS/10℃ | ≤ ±0.017 | ≤ ±0.011 | ≤ ±0.009 | ≤ ±0.009 | ≤ ±0.013 | ≤ ±0.030 | ≤ ±0.040 |
| Temperature effect on zero |
%FS/10℃ | ≤ ±0.023 | ≤ ±0.015 | ≤ ±0.010 | ≤ ±0.010 | ≤ ±0.014 | ≤ ±0.030 | ≤ ±0.020 |
| Output sensitivity |
mv/v | 2.0 ± 0.004 (Metric) 3.0 ± 0.008 (Imperial) | ||||||
| Input resistance |
Ω | 350 ± 3.5 | ||||||
| Output resistance |
Ω | 351 ± 2.0 | ||||||
| Insulation resistance |
MΩ | ≥ 5000 (50V DC) | ||||||
| Zero balance | %FS | 1.5 (Metric) 1.0 (Imperial) | ||||||
| Temperature, compensated |
℃ | -10 ~ +40 | ||||||
| Temperature, operating |
℃ | -35 ~ +65 | ||||||
| Excitation, Recommended |
V | 5 ~ 12 (DC) | ||||||
| Excitation, Max |
V | 18 (DC) | ||||||
| Safe overload |
%FS | 150 | ||||||
| Ultimate overload | %FS | |||||||
