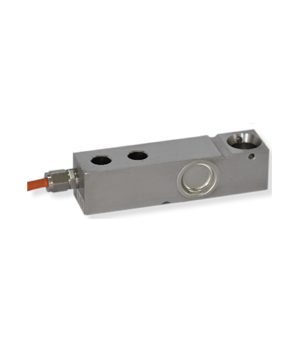

MKCells MK-BS

SPECIFICATIONS : MKCELLS MK-BS LOAD CELL
Rated Capacities (Emax) 0.5, 1, 2t Temperature, Compensated -10°C ~ +40°C
Rated Output 2.0 ± 0.002mV/V Temperature, Operating -30°C ~ +70°C
Total Error ± 0.05% FS Maximum Safe Overload 150% FS
Creep Error (30 min) ± 0.02% FS, ± 0.03% FS Ultimate Overload 180% FS
Zero Balance ± 1% FS Excitation, Recommended 10 ~ 12V DC
TC Zero ± 0.02% FS/10°C Excitation, Maximum 15V DC
TC Span ± 0.02% FS/10°C Protection Class 1P68
Input Resistance 400 ± 20Ω Contruction Nickel plated steel
Output Resistance 352 ± 3Ω Cable Length : 3m
Insulation Resistance ≥ 5000MΩ Diameter : Φ 6mm

FEATURES : MKCELLS MK-BS LOAD CELL
High accuracy shear beam load cell Multi function load cell with many application
Suitable for foklift, platform, and high capacity axle High quality nickel plated steel
5 core high quality orange cable Easy installation
